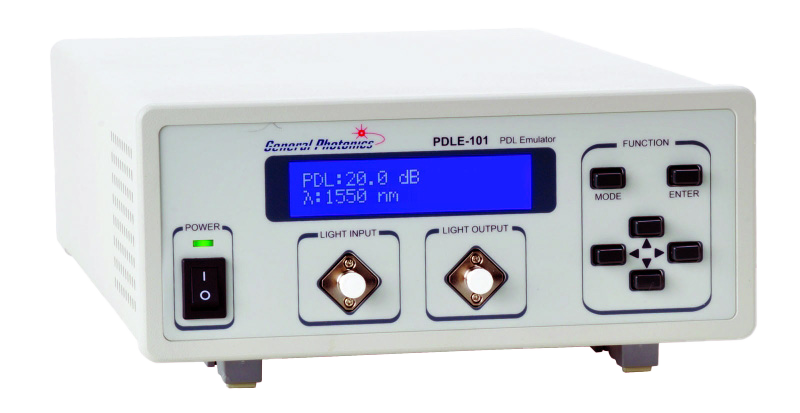

The PDLE-101 is a polarization dependent loss (PDL) source that generates PDL values up to 20 dB.
The PDLE-101 differentially attenuates one polarization component of input light to create a variable amount of PDL. It can generate PDL values up to 20 dB with a resolution of 0.1 dB for PDL tolerance testing. It can also generate variable PDL patterns with user defined range, waveform, and speed for PDL tracking speed and recovery time tests.
- Large PDL range: 20 dB
- High resolution
- Low residual PMD
- PDL scanning functions
Wavelength range C band or L band PDL dynamic range1 0.1-20 dB PDL resolution1 0.1 dB PDL accuracy1 ±(0.1+1% of PDL) dB PDL switching time 5 ms max, 1 ms typical Residual PMD <0.1 ps at PDL =0.1 dB Insertion loss (IL) 2 dB at PDL=0.1 dB, excluding connectors
For full specifications, please download the data sheet.
Solutions and Applications
The PDLE-101 generates PDL over a large range for PDL tolerance testing, and has built-in variation patterns suitable for PDL tracking speed and tolerance testing.
