os5100 Product
os5100

Displacement Gage and Sensors

The os5100 gage is a fiber-Bragg grating (FBG) based displacement sensor designed for measuring changes of up to 50 mm in civil and geotechnical structures.

Product Description

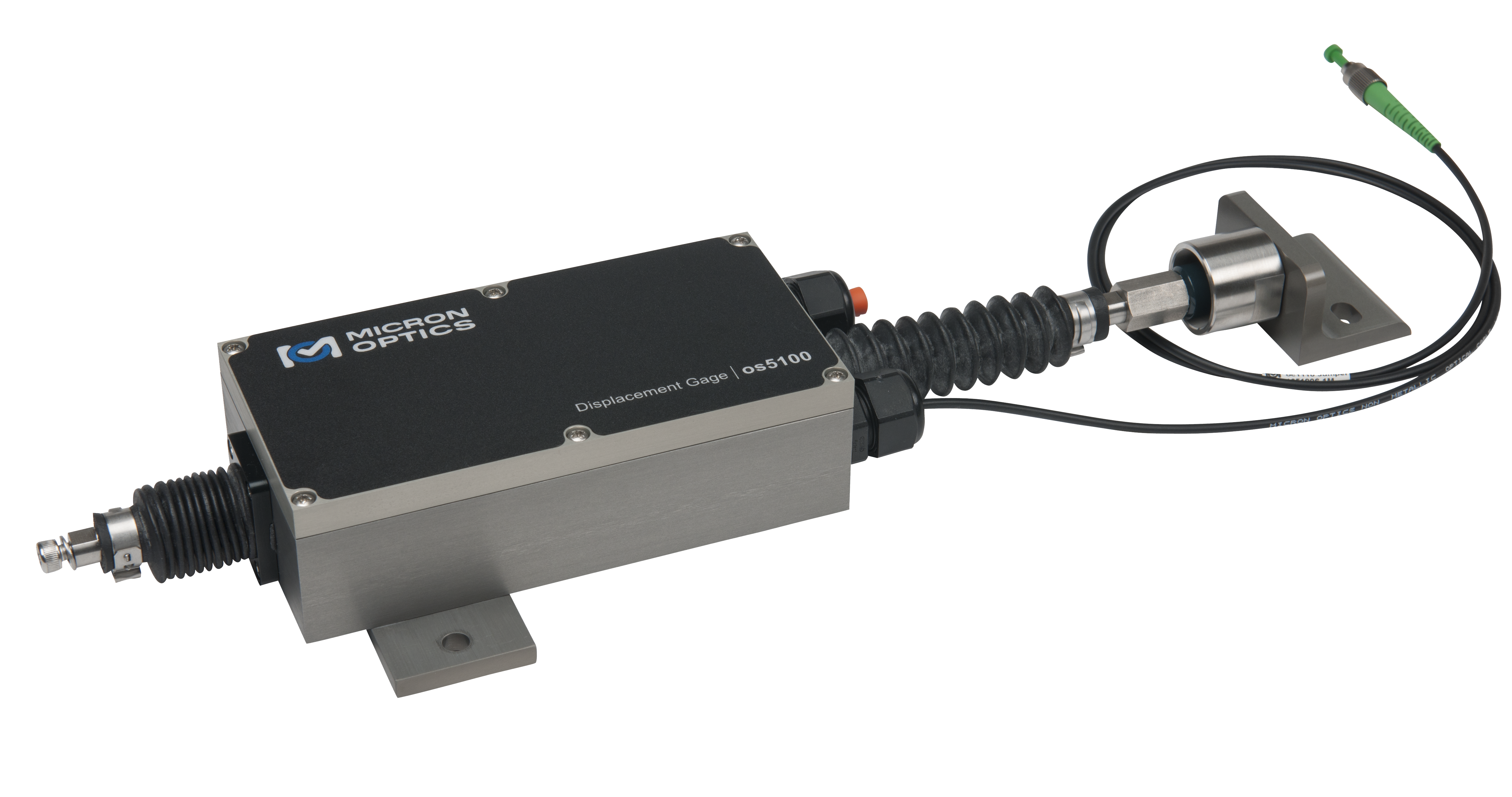

The os5100 is specifically designed to measure the displacement between two gage points on a specimen surface. The gage design is flexible enough to allow for easy attachment to various substrates, making measurements on metal, concrete and other surfaces straightforward. The two FBG displacement sensors that comprise the os5100 gage are located within the rugged hard-coat anodized aluminum enclosure which shields them from the elements and allows for installations in harsh environments.

This gage can be used alone or in series as a part of an FBG sensor array (which may include strain and temperature gages, accelerometers and other displacement gages). Cabling for such arrays is much less expensive and cumbersome than comparable electronic gage networks. Cables can be joined directly inside the enclosure, eliminating the need for separate junction boxes. The os5100 delivers the many advantages inherent to all FBG based sensors, including EMI immunity – something vibrating wire gages cannot offer.

With each gage, Luna provides a Sensor Information Sheet listing the gage factor and calibration coefficients needed to convert wavelength information into engineering units. The ENLIGHT Sensing Software provides a utility to calculate and then record, display and transmit data for large networks of sensors.


Solutions and Applications

Nuclear reactors

The os5100 Displacement Gage, combined with the HYPERION interrogator, works with a wide range of rugged sensor options to provide provides proven and reliable solutions for challenging monitoring applications.

Contact Sales to Learn More

Contact Sales Form
