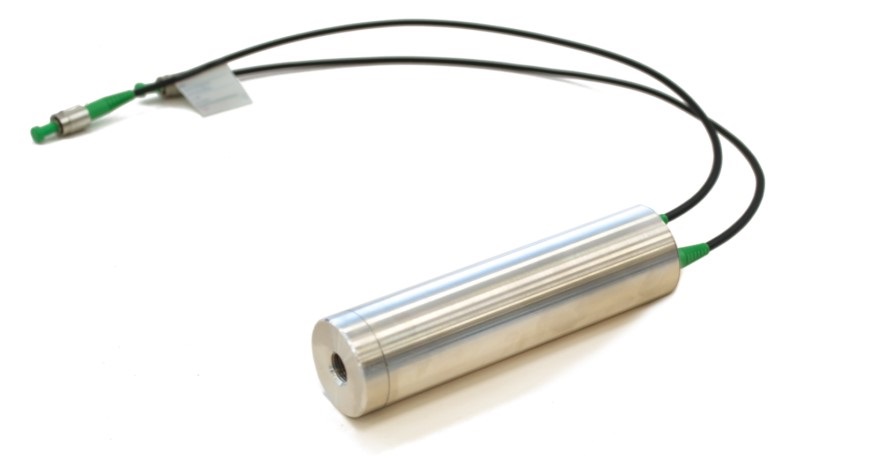

os9200 Pressure Sensor

Optical Pressure Sensor

Luna’s os9200 sensors are fiber Bragg grating (FBG) based high-accuracy pressure sensors, enabling rugged and stable monitoring systems that can be easily distributed over long distances.

Product Description

The os9200 features a novel approach to pressure sensing for both liquid and gaseous environments, utilizing FBG technology to measure minute changes in pressure. The sensor features a pressure range of 0-100 bar and a resolution of down to 0.1% full scale.

Up to 96 os9200 sensors can be integrated on a single HYPERION interrogator platform, and can also be combined on the same optical network with other FBG sensors to simultaneously capture other parameters, such as temperature, strain, displacement, acceleration, tilt, etc.

The os9200 sensors are compatible with ENLIGHT Sensing Analysis Software, an integrated suite of tools for data acquisition, computation and analysis of optical sensor networks, as well as with the HYPERION’s comprehensive Application Programming Interface (API) and examples written in LabVIEW, Python, Matlab, C++ and C#.

  • Key Features
    • Simple and repeatable installation
    • Rugged (IP67) multipoint monitoring with up to 96 sensors on a single HYPERION instrument
    • Ultra high resolution
    • Multiparameter various physical parameters measurements coupled onto the same instrumentation platform
    • Internally temperature-compensated
  • Specifications
      os9200 Pressure Sensor
    Measurement Type Pressure, with temperature-compensation
    Measurement Range 0 to 100 bar
    Resolution 0.1% of full scale
    Accuracy <1% of full scale
    Measurement Points Up to 96 with 16 channel si255; 6 sensors per channel
    Pressure inlet port thread G 1/8th

    For full specifications, please download the data sheet.
