HRS40n1 Receiver
T-Ray® 5000 Series

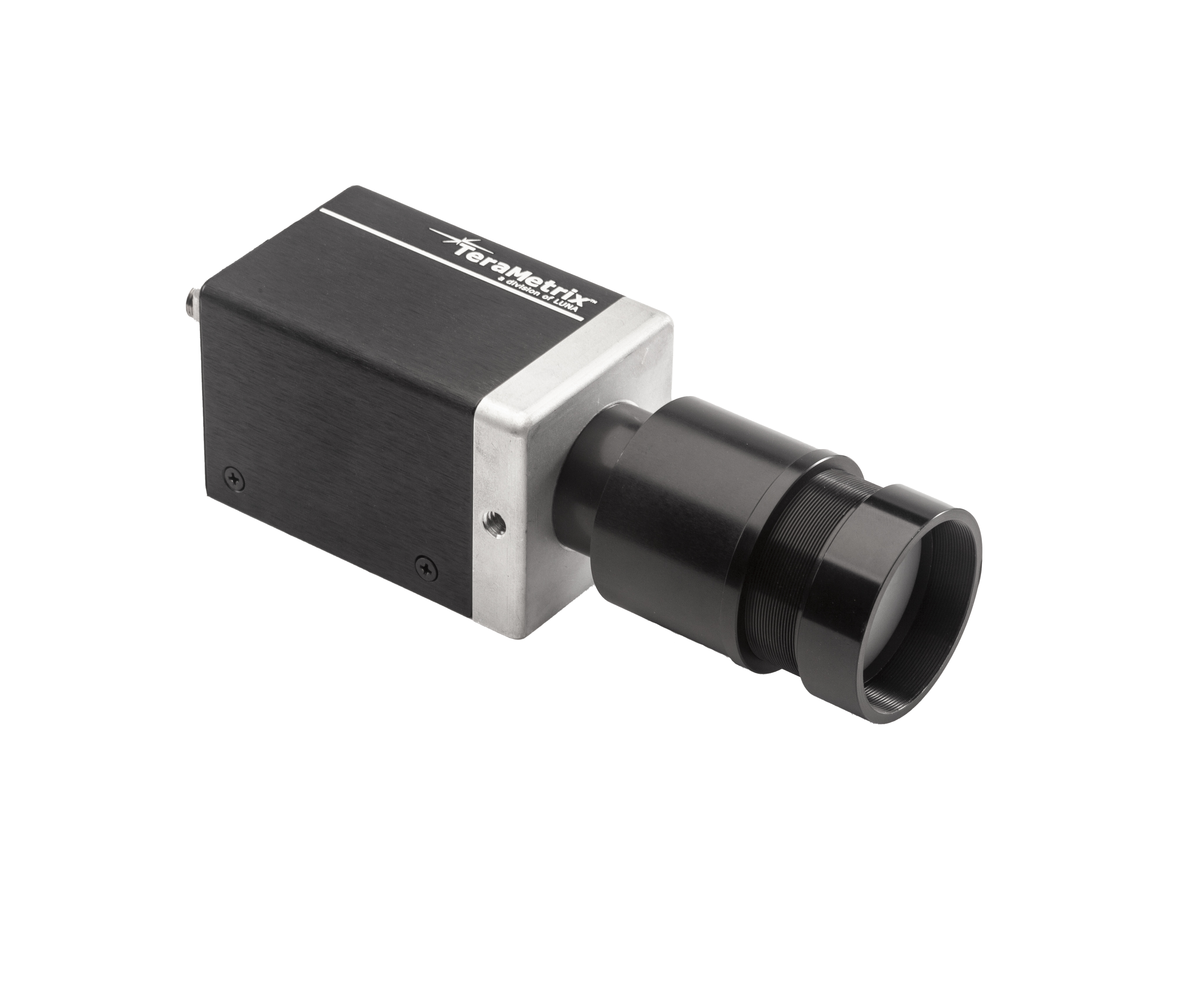

HRS40n1 Receiver

Operating in reflection or transmission mode, the fiber-coupled HRS40n1 sensor heads deliver a picosecond duration time-domain terahertz pulse, allowing high speed, scanned images to be
easily produced with the T-Ray 5000 system.

Product Description

The HRS40n1 Receiver for the T-Ray® 5000 provides high spectral bandwidth when coupled with any of the HTS40nm transmitters. The HRS40n1 provides bandwidth over 3.5 THz and
signal to noise ratio above 70 dB. By embedding amplification close to the signal source, the receiver is able to produce high signal-to-noise ratio and eliminate the need for a lock-in amplifier.



  • Key Features
    • Fiber coupled to allow movement
    • Ultra-broadband measurement
    • Transmitted or reflected data collection
    • Mates with collinear adaptor (AXA4001)
    • High signal to noise ratio
    • Hot swappable
    • Low noise to enable rapid data collection
    • Adjustable lens tube for focusing
    • Multiple lens configurations available

  • Applications
    • Gas, liquid and solid spectroscopy
    • Nondestructive materials inspection
    • Package inspection
    • Semiconductor wafer inspection
    • Reaction kinetics monitoring
    • Medical and biological imaging research
    • Remote threat detection
    • Sub-surface corrosion detection
    • Homeland Security capabilities

  • Specs
    Polarization Extinction Ratio > 20:1 Horizontal
    Available Lens Focal Length 25, 75, 150, coll. mm (Collimating lens also available)
    Beam Diameter 38 mm
    Mounting Hardware 1/4 - 20 Threaded mounting holes
    Size (W x H xD) 7 x 6.4 x 7 cm
    Weight 275 gm
  • Documentation

The T-Ray® 5000 terahertz measurement system is robust enough to be deployed in an industrial environment and has all of the flexibility to solve your measurement application.
