T-Ray® 5000 Series

Dual Channel Control Unit


Replacement Product: T-Ray® 5600 Terahertz Control Unit

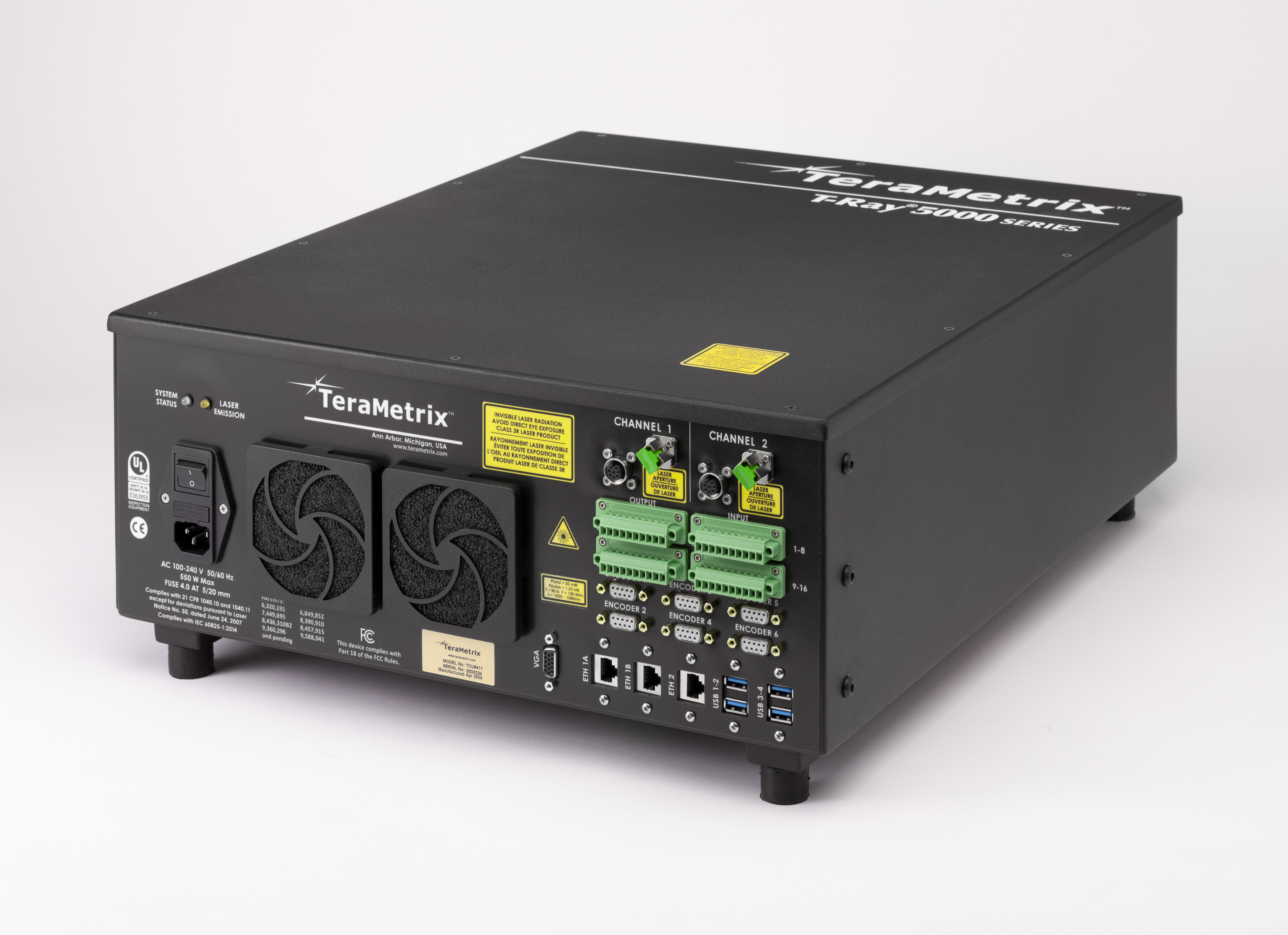

The T-Ray® 5000 Dual Channel Control Unit (TCU54nm) is the same size, shape and weight as the single channel unit (TCU52nm) but with the added benefit of being able to control two terahertz sensors for multi-sensor applications.

Product Description

Based on the same proven technology as the single channel unit, the TCU54nm is characterized by high precision, short measurement time, and a robust construction. The TCU54nm monitors and controls all aspects of THz generation and detection, delivering precisely controlled optical signals to the terahertz transmitters and receivers, or the T-Gauge® Sensor Heads.. Measured data is processed within the Control Unit at a rate of up to 1 kHz, making the T-Ray® 5000 one of the fastest terahertz systems available. The processed waveforms enable multiple measurements to be made simultaneously with a single sensor head.

The T-Ray® 5000 Control Unit and accessories are linked with robust connection points and interfaces appropriate for industrial environments. Adequate connections are provided to allow seamless integration with most QC systems or experimental applications. The industry-standard interface connections provide straightforward integration with the T-Gauge® Sensor.

  • Key Features
    • Two reflection sensors
    • New lightweight umbilical
    • High speed measurement
    • Independent measurement recipes
    • Simple user interface
    • Single fiber to each head
  • Applications
    Industrial process control
    • Commercial roofing
    • Foam density
    • Coating thickness
    • Plastic extrusion
    • Asphalt shingles
    Nondestructive materials inspection
    • Aircraft
    • Packaged goods
    • Random inspection
    • Spacecraft
    • Pipeline repairs
    Converting applications
    • Paper coating
    • Multilayer films
    • Tire
    Scientific applications
    • Terahertz Imaging (transmission and reflection)
    • Time Domain Spectroscopy
  • Specifications
    Maximum measurement range

     12, 25, 50 or 100 mm
    (will vary with material measured)

    Measurement rate 100 and 1000 Hz
    (determined by measurement range)
    External monitor connection  VGA
    A/D dynamic range 16 bit
    Operating temperature range 0-50 °C (20 - 90% RH non-condensing)
    Current required  <4 Amps (110/240 VAC, 50/60 Hz self-sensing)
    Size (W x H x D) 17.5 x 21.5 x7.5 inches (minimum size)
    Weight 18.2 kg
    USB ports 4
    Ethernet ports 3 (2 independent IP addresses)
    Digital interface 16 (inputs and outputs)
    Encoder inputs 6 (high speed)

    For full specifications, please download the data sheet.
